ULD Handling with mobil terminal equipment

ULD Handling

Essential tools for handling, storing and transporting ULDs

Our mobile equipment enables your staff to handle ULDs safely and efficiently while maintaining your terminals flexibility and scalability.

Mobile terminal equipment overview

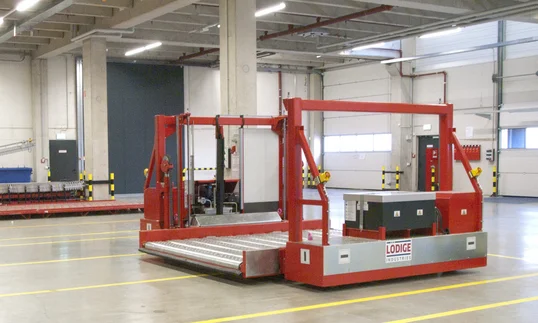

FlexLoader

The FlexLoader merges the functionality of a truck dock and a pallet transporter.

Operable via remote control and powered by a battery, the FlexLoader also has a freely steerable drive system which affords flexible movement in all directions. The vehicle's integrated lifting function makes it possible to pick up and set down ULDs and pallets from different heights.

  • Extremely flexible options for handling courtesy of remote control operation
  • Versatile range of uses with just one piece of equipment
  • High manoeuvrability
  • Build and break pallets anywhere on site
  • IATA-compliant transportation of ULDs and pallets



FlexLoader L:
Lifting area: 203 - 1,600 mm
ULD weight: max. 6,800 kg
ULD base plate size: max. 3,175 x 2,440 mm

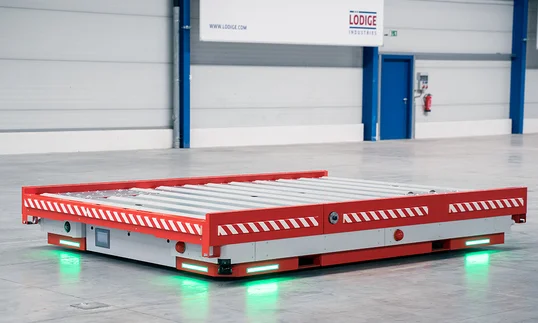

Automated Guided Vehicle (AGV)

Automated Guided Vehicles (AGV) for baggage and cargo ULDs

Lödige Industries is revolutionising the response to current challenges in air cargo handling with the introduction of intelligent automated guided vehicles (AGV) for flexible and scalable ULD transportation.



  • Reducing the need for stationary equipment
  • Improving express freight flows
  • Optimise storage, weighing and x-ray processes

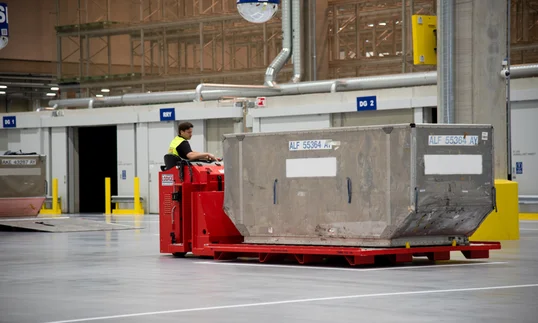

Slave Pallet Mover

The slave pallet mover is an electrically operated floor conveyor for transporting slave pallets.

It is powered by a battery and has a lifting unit for elevating pallets. Three forks ensure the ULDs are transferred safely. This means slave pallets can be moved throughout the building quickly and easily.

  • Flexible transshipment of slave pallets
  • Flexible organization of build and break positions
  • IATA-compliant handling of ULDs
  • Careful ULD handling



Capacity: 7,500 kg
Cargo: ULD max. 10 ft
Max. lifting speed: 0.025 m/s
Max. lifting stroke: 455 mm
Overall size (l x w): 4,130 x 1,720 mm

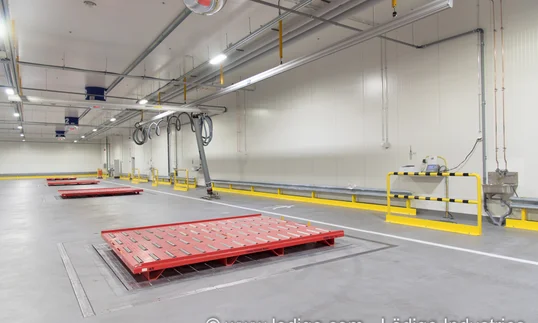

Slave Pallets

For non-mechanized terminals, slave pallets are an essential tool for handling and transporting ULDs.

The pallets are equipped with four rows of 16 non-powered rollers. There is a non-slip treadplate between the rollers that allows the pallet to be walked on. Slave pallets can be transported using powered conveyor systems or our slave pallet mover.



  • Flexible setup of work stations
  • Flexible storage options
  • Flexible transportation option
  • IATA-compliant handling of ULDs
  • Stackable to save space



Capacity: 6,800 kg
Dimensions (L x W x H): 3,300 x 2,600 x 228.2 mm
Weight: 700 kg
