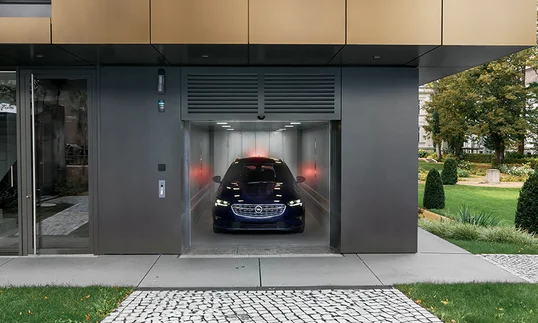

Compact and functional car lift: the VERTICAR
PARK-AND-HIDE with solid technology, simple handling & elegant facade
Robust technology, seamless facade, quick to install. The VERTICAR turns your vision into reality.
You can rely on the VERTICAR. Its robust and sophisticated technology is based on our more than 70 years of experience in the design and manufacture of scissor lifts. Thanks to its compact design and flexible cabin size, it fits perfectly into construction projects with limited space and can be installed in no time.
Benefits of the VERTICAR
- Easy to operate - By app and push of a button
- Space-saving - The smallest shaft available in the market and low headroom
- High-quality facade - Modern doors and full integration with building facade
- Quick installation on site (1 week)
- Sophisticated technology - Based on 70 years of experience
Function and facade even for building projects with limited space.
New: Call car lift via app
Contactless operation of car lifts for smart and safe access
Car lift control at the swipe of the smartphone
With our smartphone app solution users can call and operate car lifts via smartphone. The integrated administration tool lets you easily add or manage users and restrict or grant access saving time and cost.
Part of the facade or garage look?
You determine the facade!

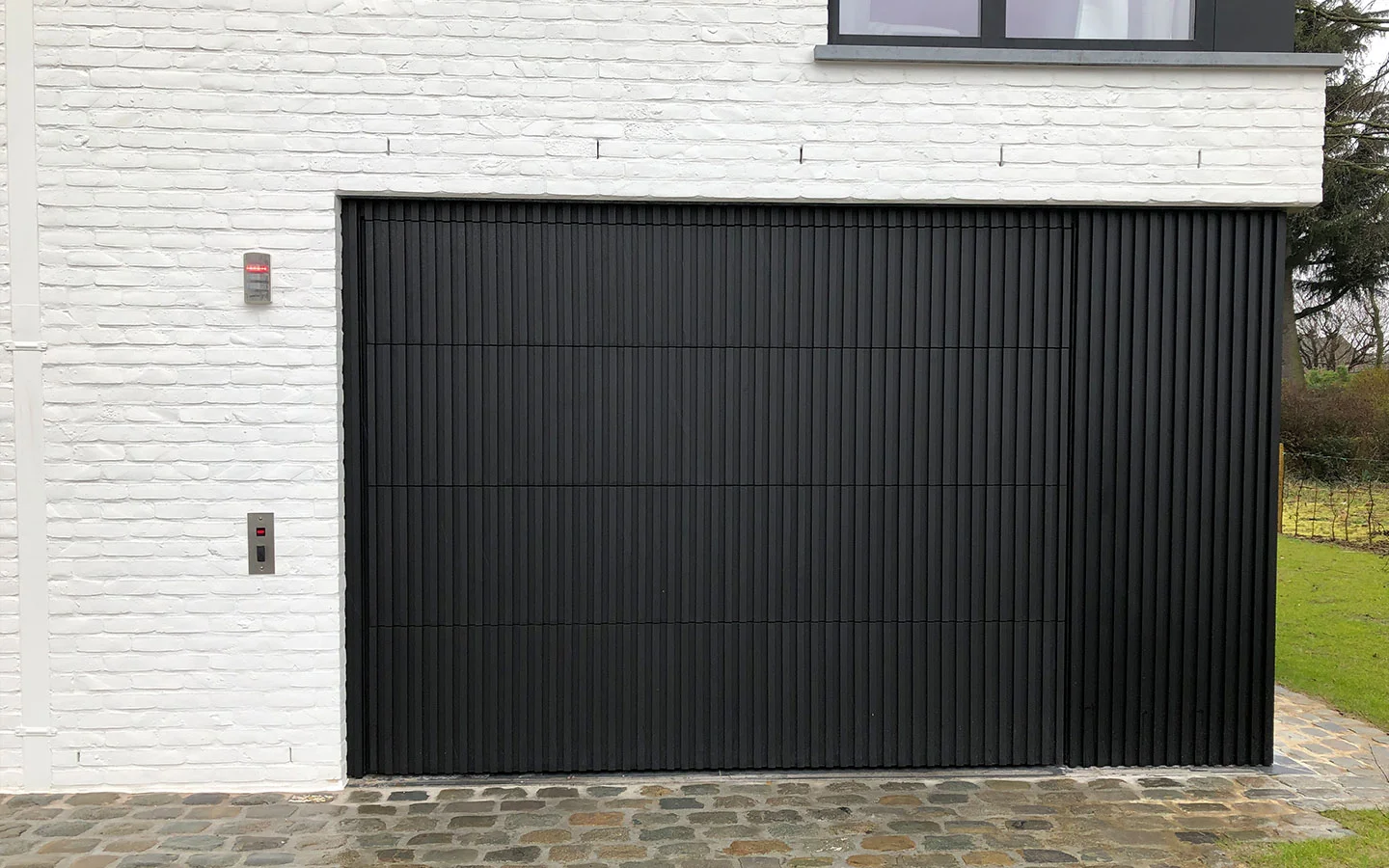

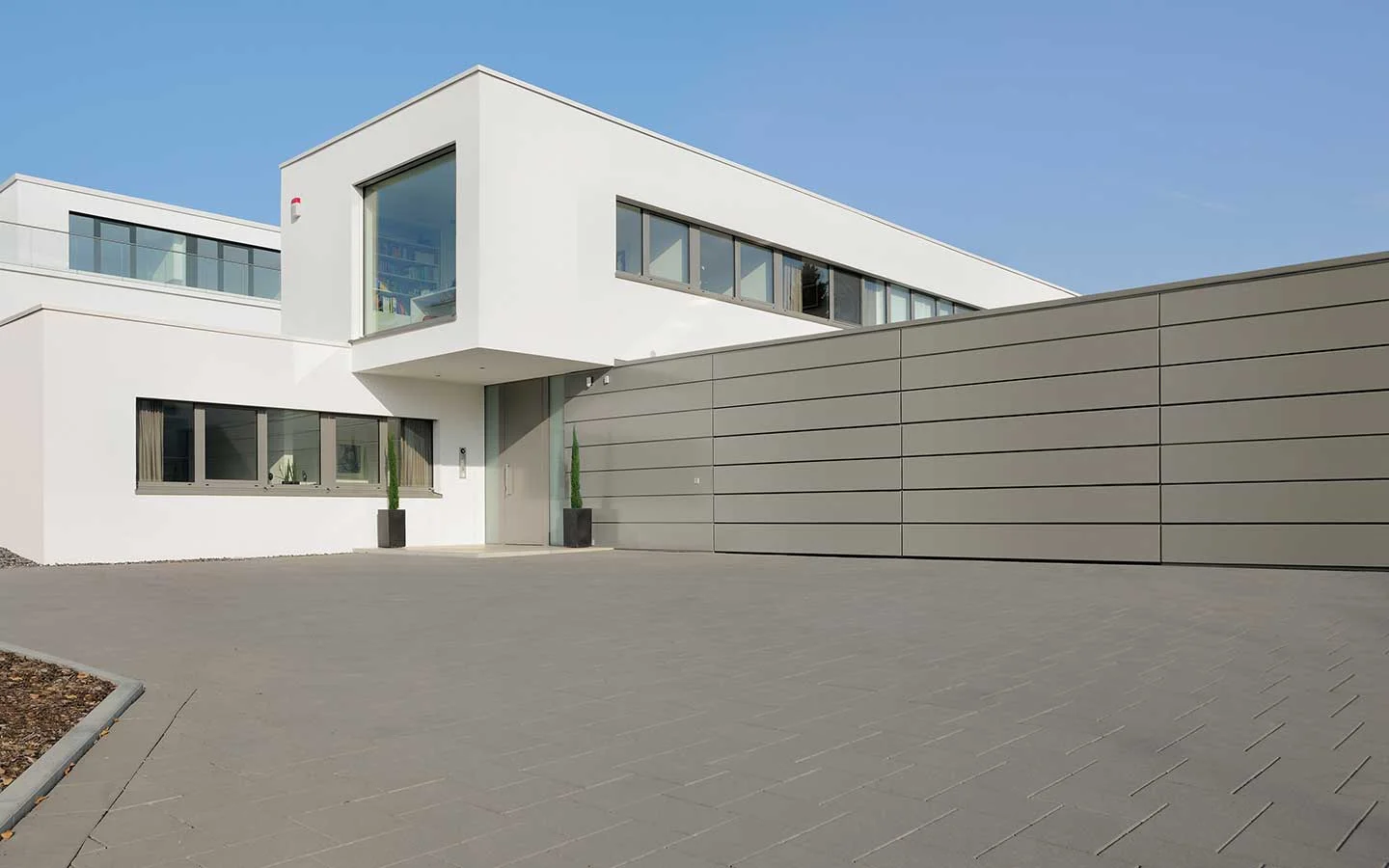

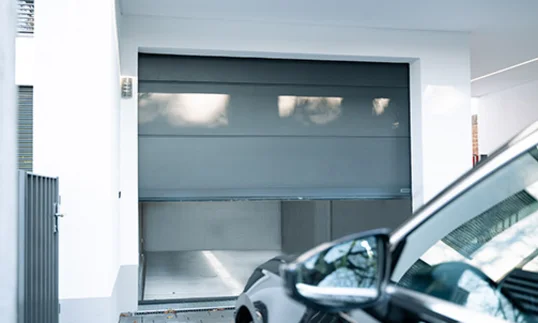

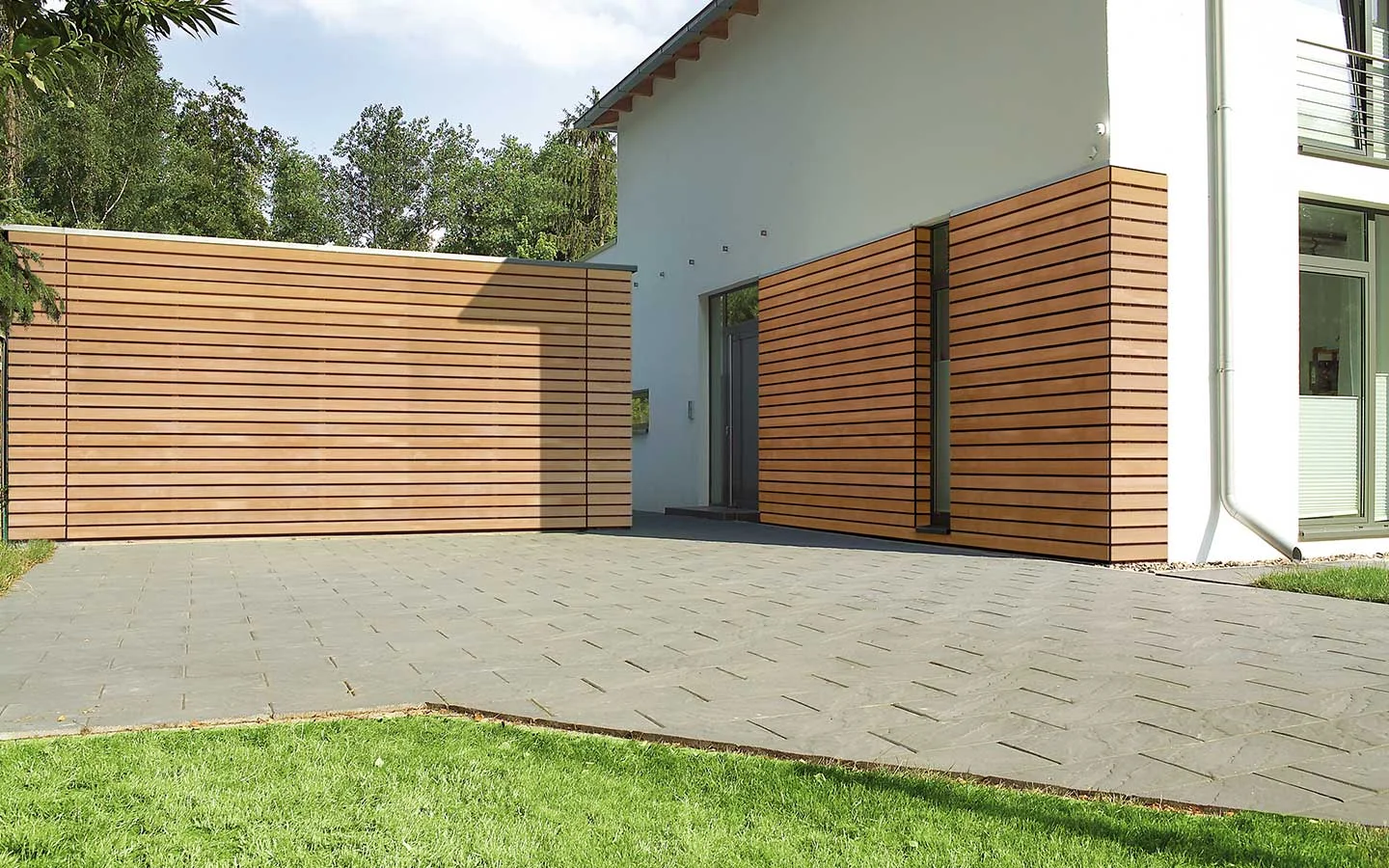

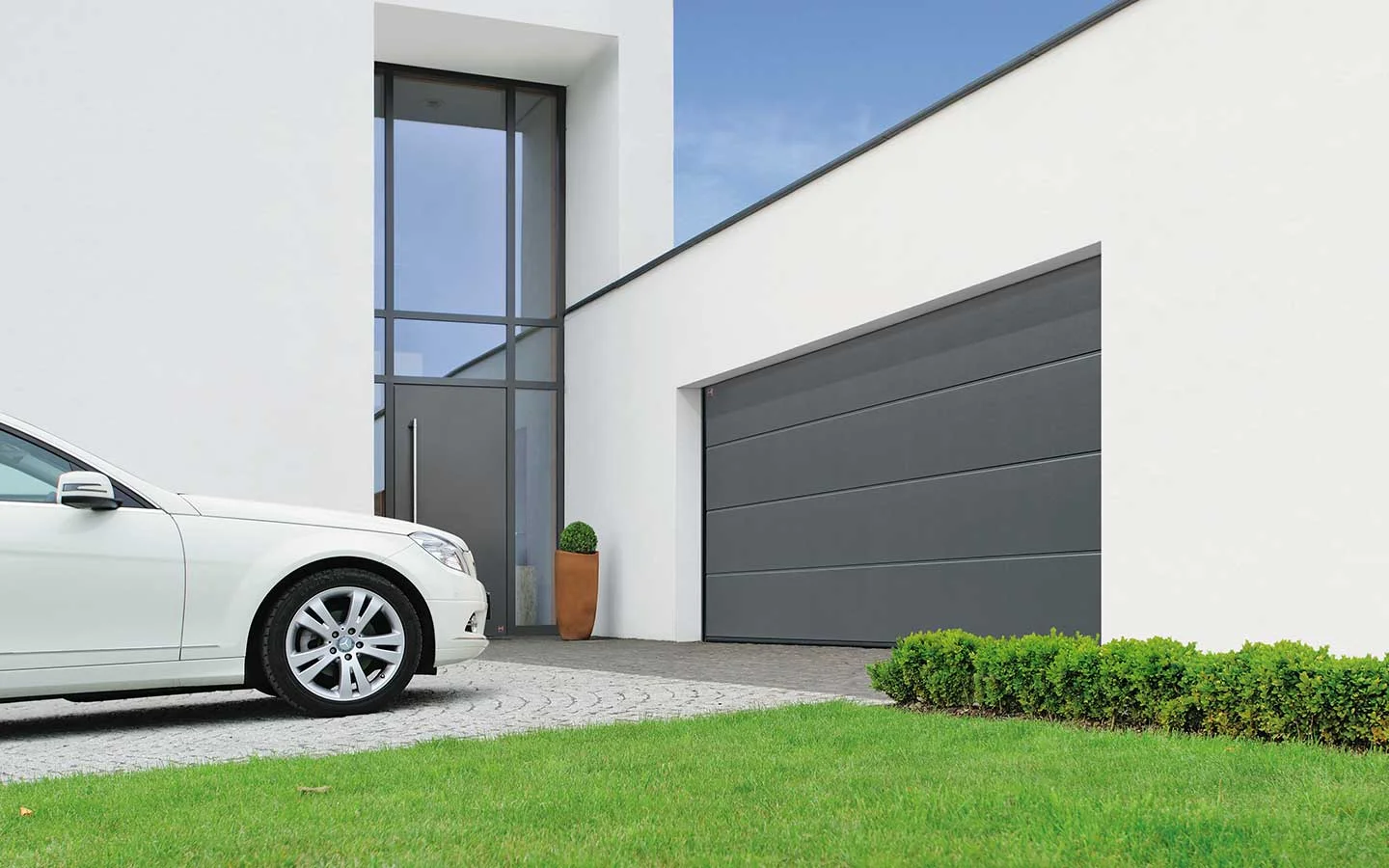

The VERTICAR uses Hörmann's elegant automatic sectional doors as standard. This gives you the choice of integrating the door flush into the facade or selecting from the equally elegant and functional surfaces from Hörmann. Modern design combined with proven technology for efficient access to the underground garage.
Technical data
| Lifting height | 3,500mm |
| Speed | Max. 0.15m/s |
| Load Capacity | 2,500 – 3,000 kg |
| Number of Stops | 2 |
| Cabin size (width x depth) | Max. 3,000 x 6,000 mm |
| Cabin height | 2,000mm |
| Shaft size (width x depth) | Cabin width + min. 400 mm x cabin depth + min. 50 mm |
| Operation | By push & hold button |
| Passengers | Permitted in vehicle |
| Norm | Tested to 2006/42/EG and EN 1570-1 |
| Number of Parking Spaces | <15 parking spaces |
| Electricity Supply | 3/N/PE AC 400 V 50 Hz, PN= 8 kW, In = 16 A |
Principle
The VERTICAR is a hydraulic scissor lift that has been specially designed for transporting cars and passengers in confined spaces. Type-tested according to the Machinery Directive 2006/42/EC and DIN EN 1570-1, the VERTICAR must always be built into a closed shaft on site. The control cabinet and drive unit are housed in a small enclosed power unit room.
Possible applications of VERTICAR:
Single-family detached home
Multi-family buildings and office buildings
Single-family detached home
With the VERTICAR, cars can be parked in the basement without building a long drive-in ramp. With its sectional door the car lift resembles a garage entrance or can be integrated into the facade. It is a perfect solution to create more parking space in a single-family detached home (up to 15 parking spaces).
Multi-family buildings and office buildings
With the VERTICAR you can create additional parking space in multi-family houses and office buildings. It is particularly suitable for the development of up to 15 parking spaces in basements.
