PEGASOS: Garage Car Lift

Discover the space-saving PEGASOS garage car lift

Optimise access and maximise parking spaces without compromise

When planning parking garages, architects and planners are often faced with the challenge of realising all the necessary parking spaces on the given floor space. Especially in urban areas, floor space is often in short supply. This often results in narrow, uncomfortable access roads and a reduction in the amount of usable space in a development.



The PEGASOS floor to floor car lift from Lödige Industries is a perfect solution for home, residential or office construction projects with limited space. With compact shaft geometry and different door variants available, the PEGASOS allows you to make the most of your space.

How does the PEGASOS car lift work?

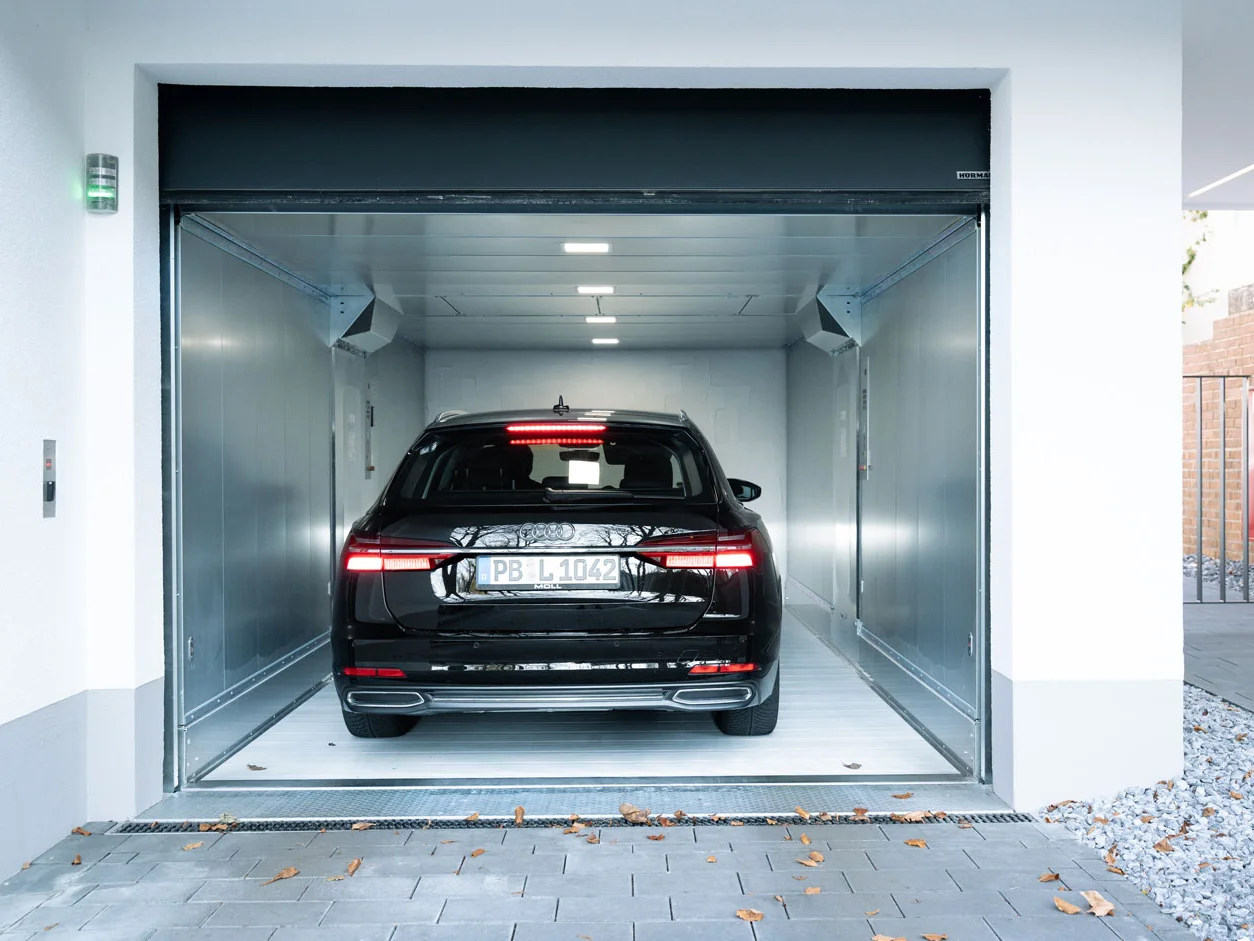

The parking process for the PEGASOS garage car lift is extremely simple and convenient: the driver drives a car into the lift cabin, is transported vertically by the lift and exits the lift in the direction of travel at the desired parking level. This process is facilitated by an intuitive user guidance system. By dispensing with a conventional access ramp, significant space can be saved.

Why decide on a PEGASOS garage car lift?

The benefits of a PEGASOS garage car lift

Save space, gain space

Compact shaft dimensions

Low shaft headroom

No machine room necessary

Low pit of 150mm or ramp

Designing the facade

Variety of door options

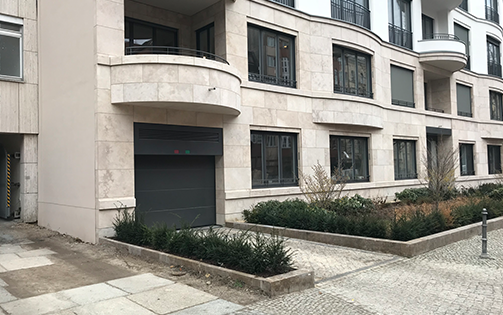

Sectional door from Hörmann in a wide range of design options

Multiple applications

Single-family detached home

Apartment houses

Office buildings

Hotels

Easy installation. Low operating costs.

Short installation time

Easy installation even in existing buildings

Cost-effective electric chain drive

Save excavation costs by using a 150mm ramp instead of a pit

Comfortable user experience

Drivers acn remain in the vehicle

Multiple access options

Comfortable access as door width equals cabin width

Save space. Gain space.

The PEGASOS garage car lift is a space-efficient alternative compared to conventional access ramps. It generates additional living and parking space, providing architects with more freedom in the overall building design.



What’s more, by paying particular attention to compact shaft dimensions, architects and planners can further reduce the space required by selecting the PEGASOS car lift. This is particularly aided with the absence of a machine room, freeing up more valuable floor space.

Planning example of a PEGASOS residential garage car lift

The following planning example illustrates the use of a space-efficient residential garage car lift. By using a PEGASOS car lift, the owner was able to dispense with an access ramp and thus extend the apartment by an additional room with patio access. Car lifts can save up to 30m² or more space compared to a conventional access ramp.

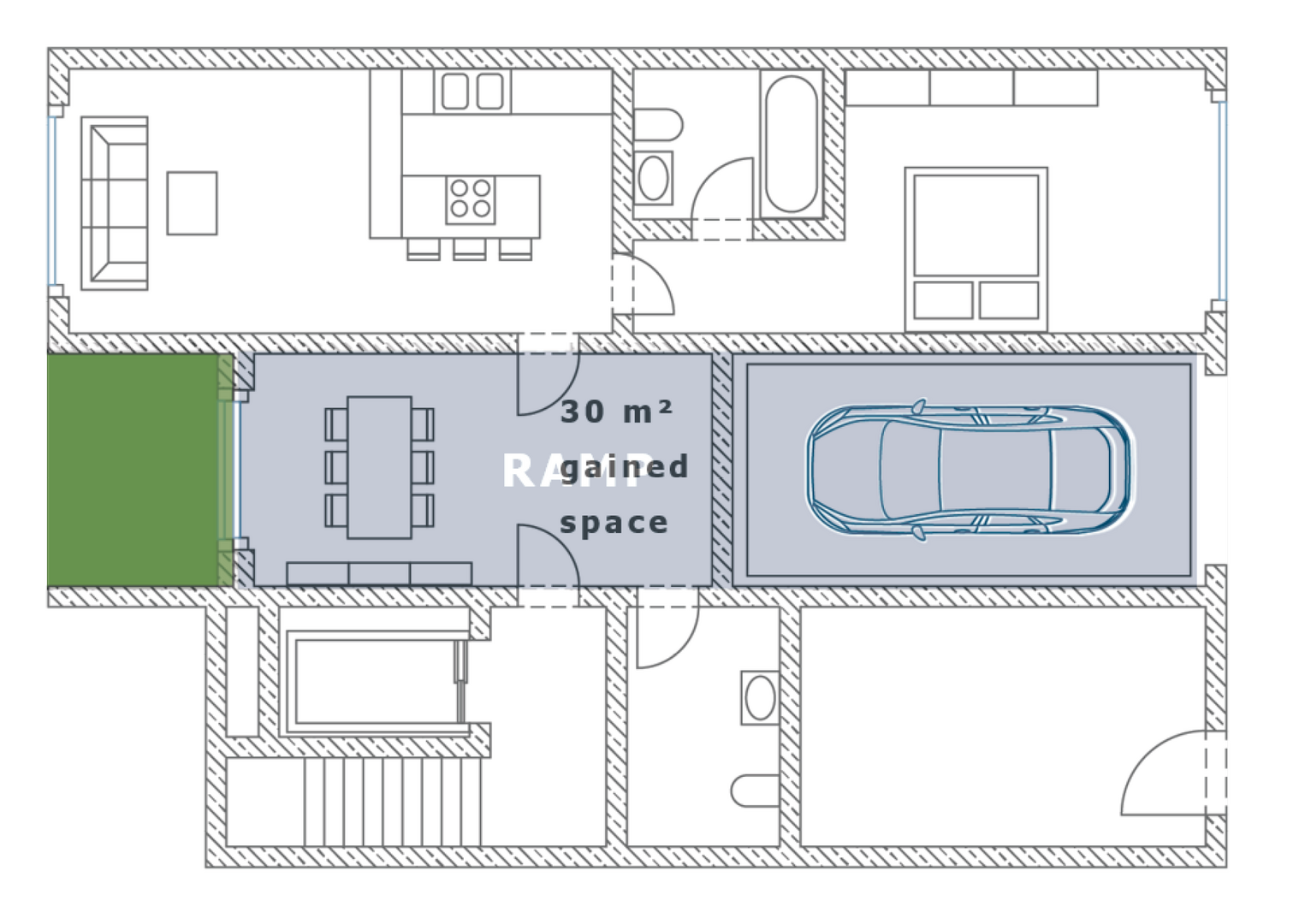

Top view of apartment building with ramp and car lift

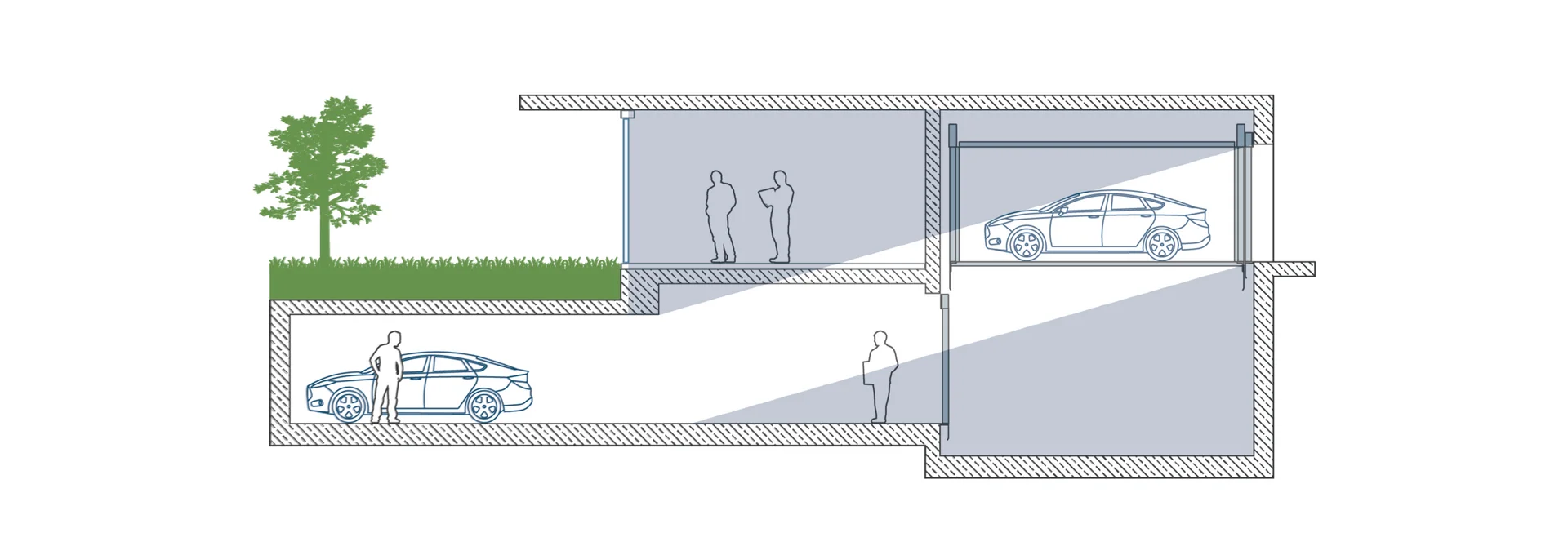

Cross section of apartment building with ramp and car lift

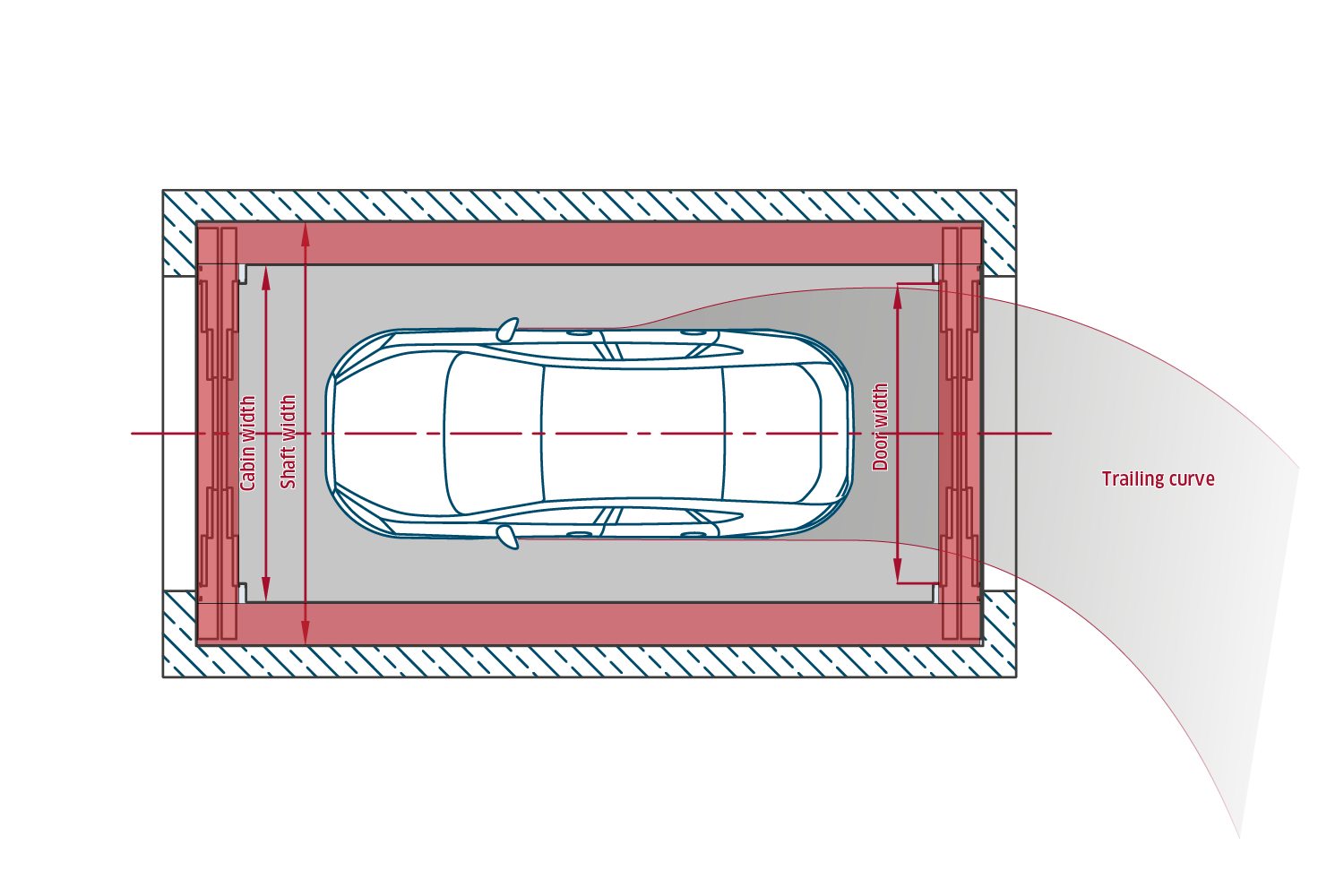

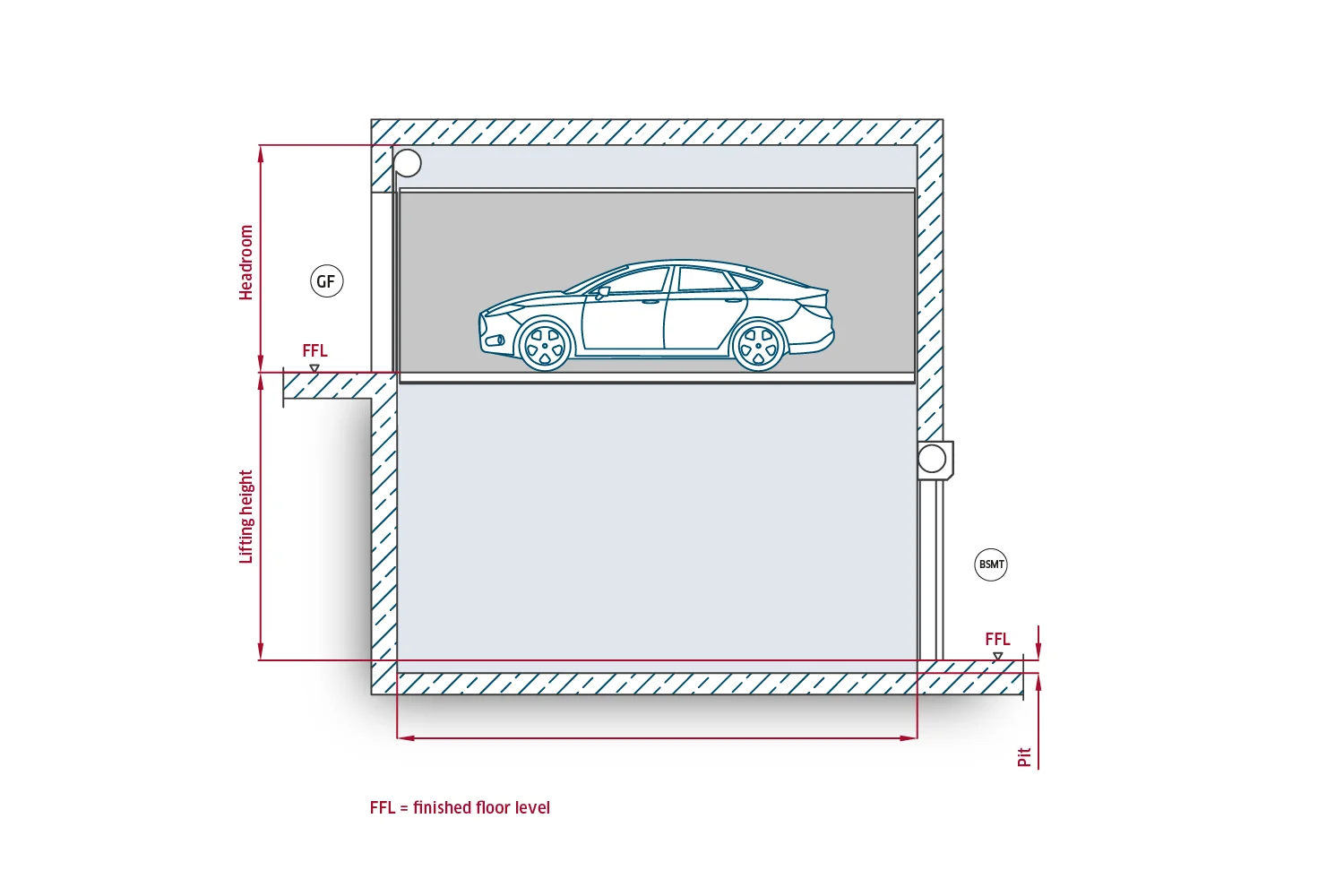

Benefits with the PEGASOS car lift compared to hydraulic car lifts

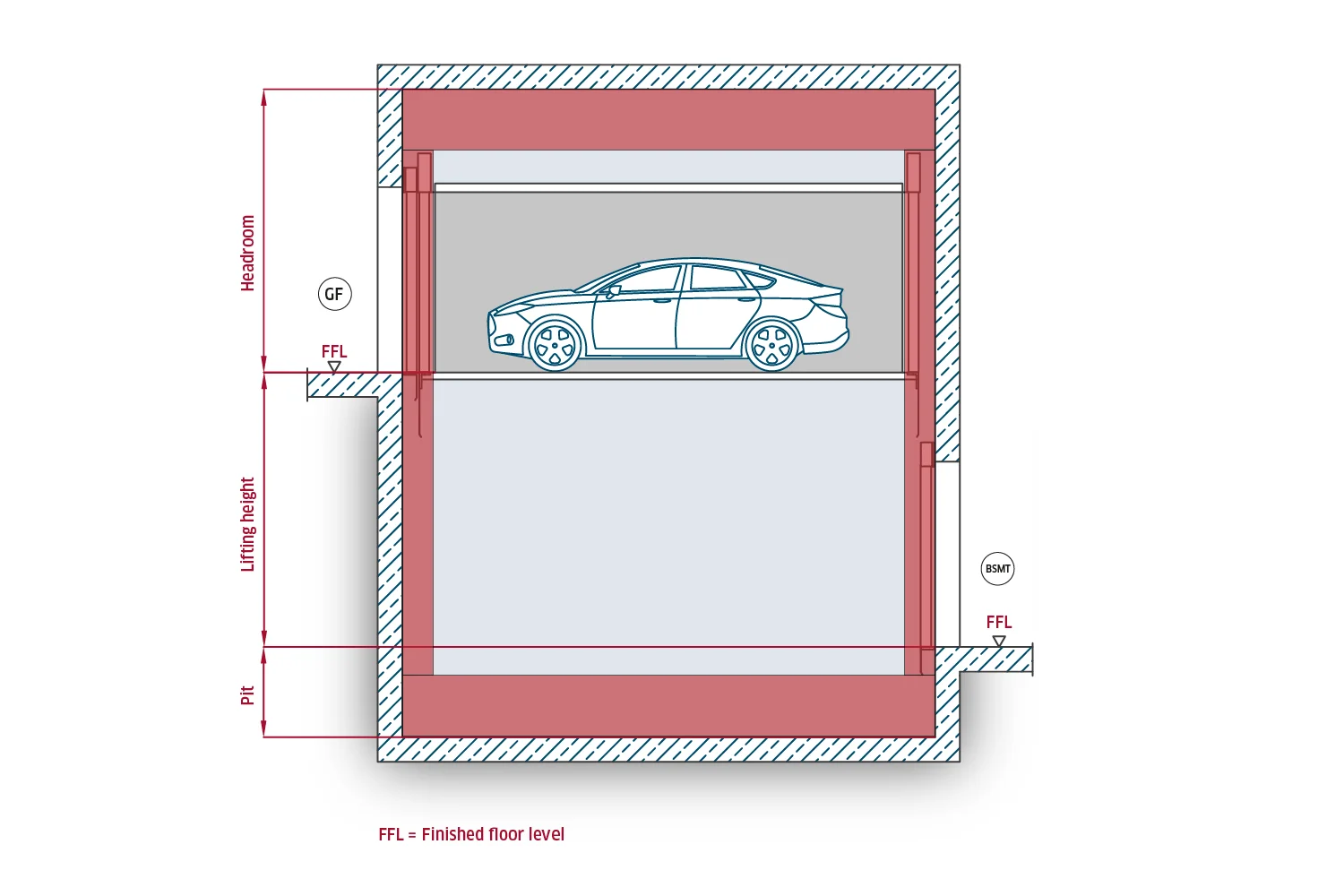

Due to its compact shaft dimensions, the PEGASOS can be installed in a considerably narrower shaft than a hydraulic car lift with the same cabin size. This makes it ideal for use as a car lift in homes, high rises, underground garages and more.

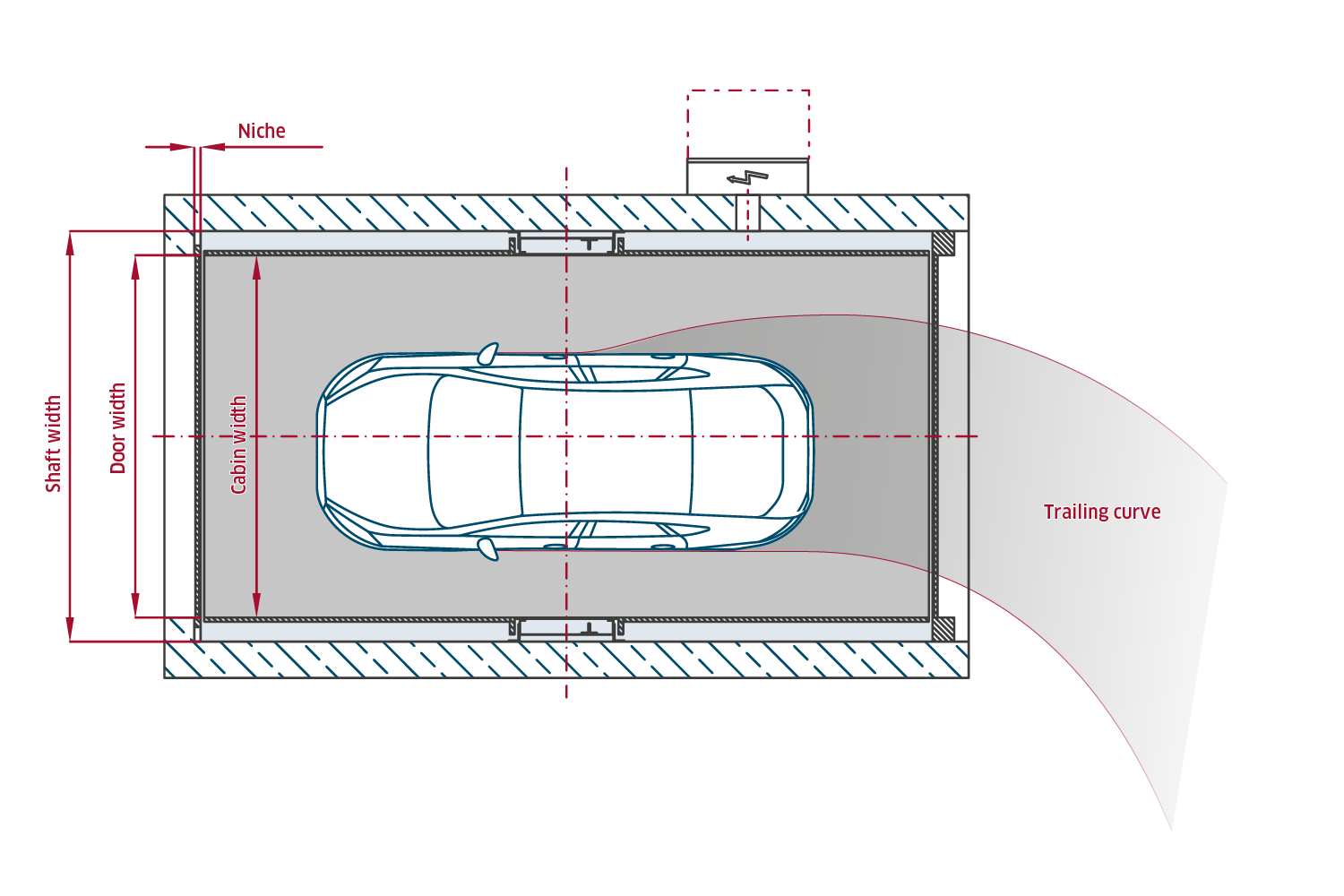

For the PEGASOS, shaft width equals cabin width + 450 mm and shaft depth equals cabin depth + 60 mm. The PEGASOS cabin width ranges between 2,500 and 3,000 mm, the cabin depth between 5,500 and 6,000 mm, with a cabin height of 2,100 mm.

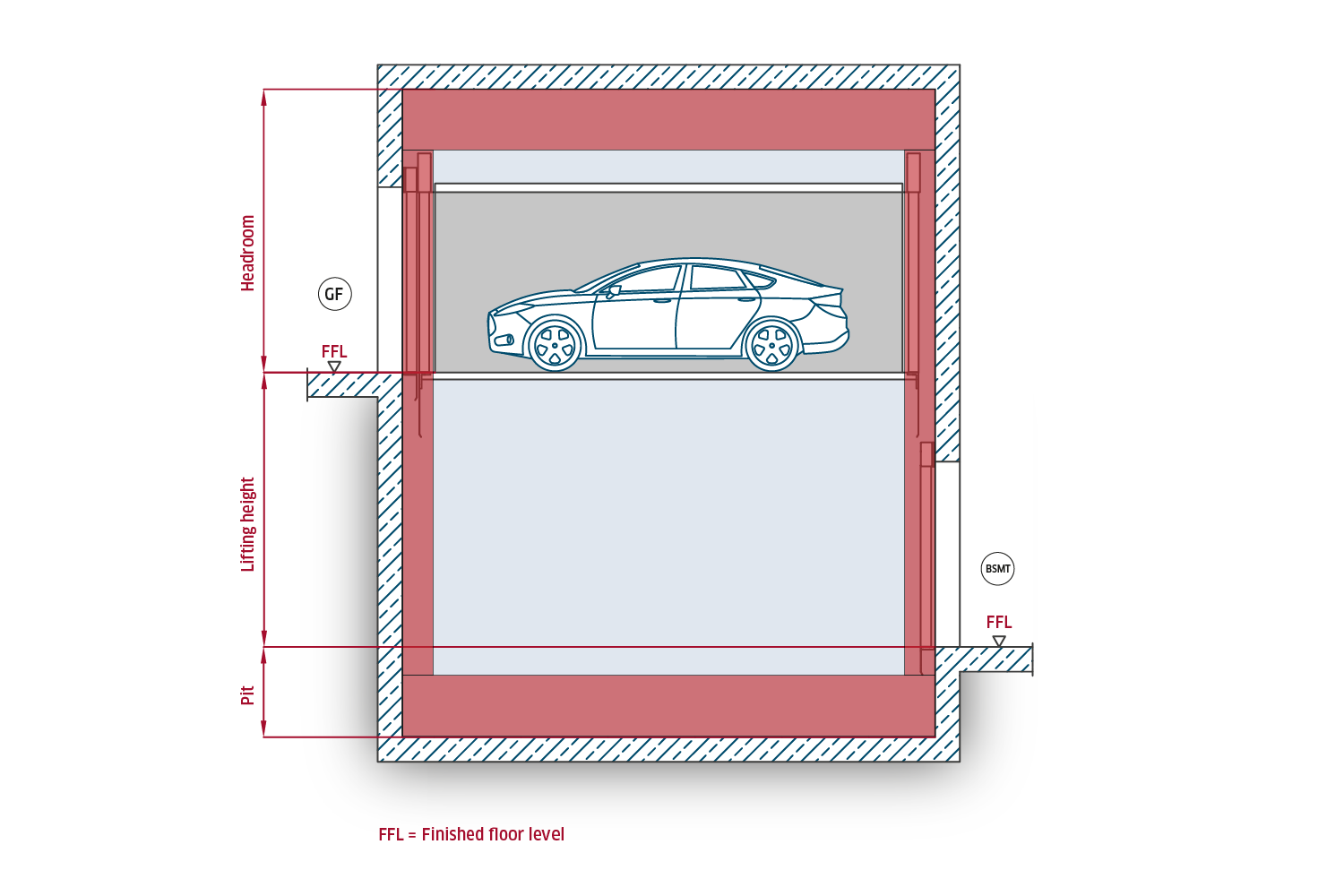

Space/area gain of up to 7.5 m² is possible with the PEGASOS car lift. Due to the low shaft headroom height of 2550 mm, the PEGASOS allows architects to maintain standard floor level heights.

PEGASOS technical data

Lifting height max. 24 m
Nominal speed 0.15 m/s
Pit depth 150 mm
Nominal load 2,700 - 3,500 kg
Cabin width 2,500 - 3,000 mm
Cabin depth 5,500 - 6,400 mm
Cabin height 2,100 mm
Stops 2 - 4
Accesses 2 - 8 (one above the other or opposite)
Landing head height min. 2,550 mm -
depending on landing doors
Shaft width Cabin width + min. 400 mm
Shaft depth Cabin depth + 60 mm
Axle load max. 1,700 kg -
forklift operation prohibited
Control Push button control
Drive Electric with chain, 8 kW
Operating modes Fully automatic travel (2 stops)
Automatic travel (from 3 stops)
Directives Machine Directive 2006/42/EC
DIN EN 81-41 (on the basis)
Passenger ride Car with passengers allowed





Configure your BIM model

Plan your individual BIM model and download it in the right format for AutoCAD, REVIT, etc.

HubSpot CTA

Freedom of design in building planning

Being able to seamlessly realise the architectural vision of a building is the goal of every architect, planner and builder. Selecting a car lift as a space-saving alternative to an access ramp offers you a wide selection of customisations.

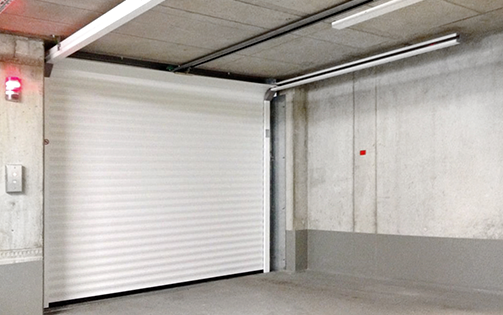

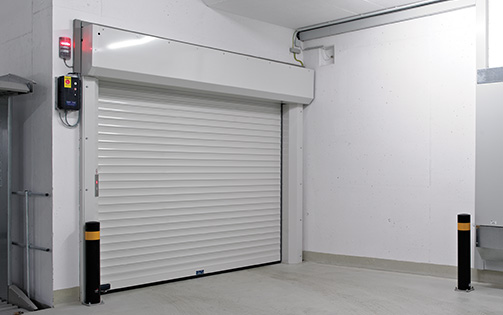

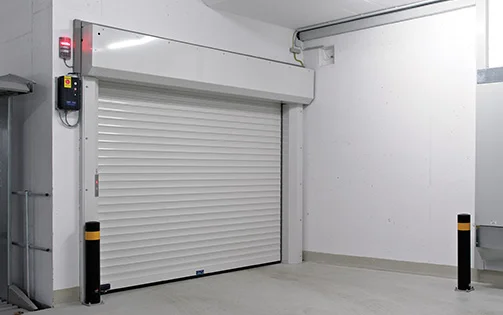

Whether it’s a roller shutter, sectional door or electric slatted sliding door, the PEGASOS car lift fits seamlessly into any building design, giving building planners more room to plan.



Download detailed information about the door options

  • PEGASOS - Door options (United Kingdom)
    The main differences and characteristics of the various door variants explained with the aid of installation examples and technical illustrations. (Status: 30.06.2022)

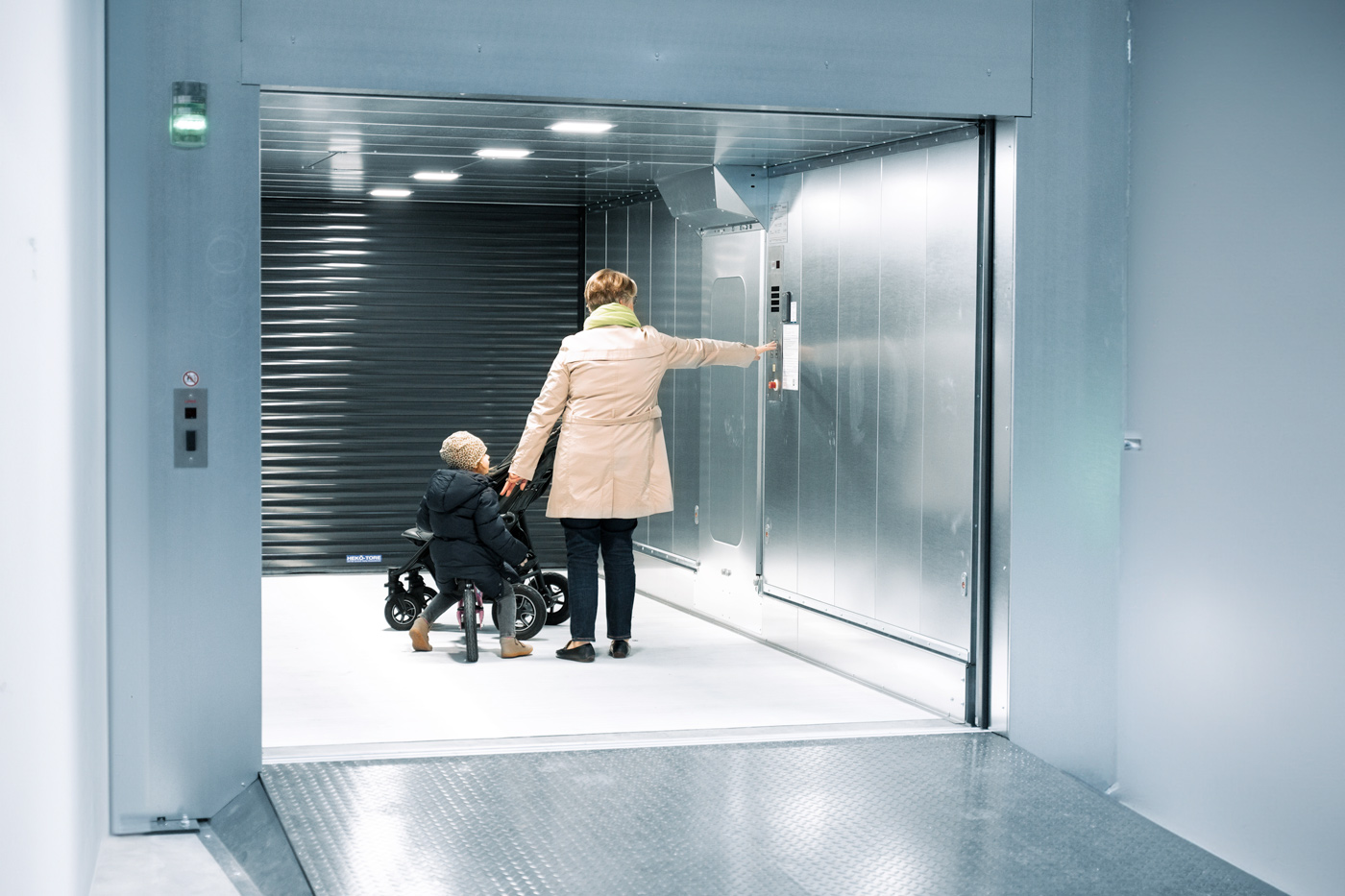

Convenient to use, parking becomes an experience

The user experience plays an increasingly important role in the planning of a building. Today's residents are looking for a convenient and modern experience. If you think of narrow, dark garage entrances, it quickly becomes clear that many aspects of parking garages can be improved.



With this in mind, the PEGASOS garage car lift can be designed to resemble a conventional garage from the outside, even though its use is just as easy. Whether it’s for a detached home, high rise residential building or office, entry and exit is always convenient with the PEGASOS.



This is because the roller doors are installed in the full width of the cabin. In this way, the maximum cabin width can be used for entry and exit, reducing the space required for the towing curve.

Users can call and operate the car lift with the help of a classic remote control or the parking app on their smartphone. Thanks to the integrated user management, additional users or groups can easily be added, managed and access restricted or granted, saving valuable time and costs. The Pegasos delivers a modern and elegant parking experience to homes and apartment buildings.

Control your car lift with an app

Contactless operation of car lifts for smart and safe access

Car lift control at the swipe of the smartphone

With our smartphone app solution users can call and operate car lifts via smartphone. The integrated administration tool lets you easily add or manage users and restrict or grant access saving time and cost.

HubSpot CTA

Easy planning and quick installation

We provide online tools for easy and quick planning of the PEGASOS car lift. The downloadable guide provides detailed information on compact shaft geometry, insulation, control cabinet and much more. With our online configurator, you can start planning directly and get a first draft in Revit, CAD or similar format.



We are happy to support you in the planning phase as well as in all other project phases. Our parking solutions experts are available to advise you and look forward to discussing your projects with you.


Want support in all planning phases for planning parking solutions? Contact us today.

HubSpot CTA

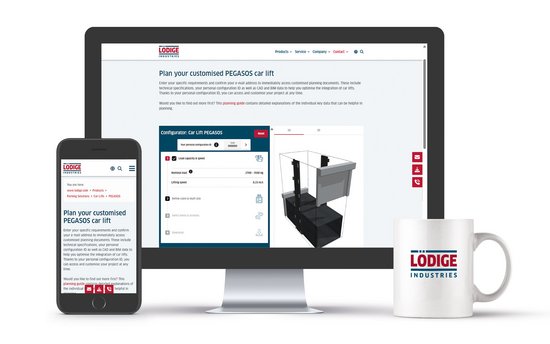

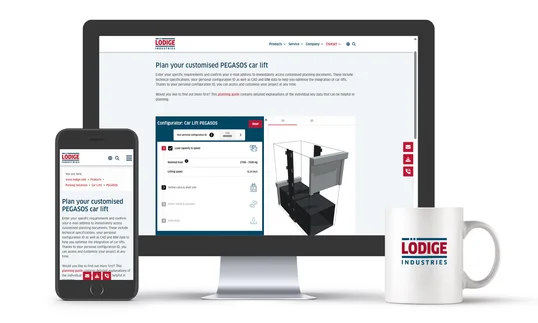

Online Configurator

Configure an individual BIM model of the PEGASOS car lift and received data for Revit, CAD, etc. directly.

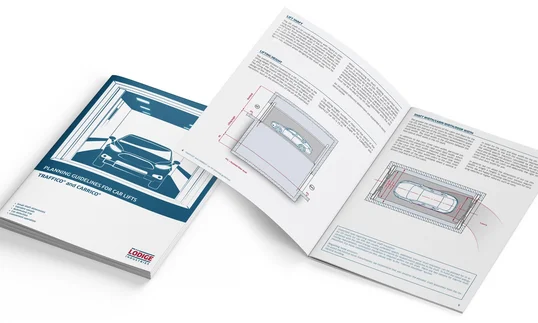

Download the PEGASOS planning guide

Benefit in planning from our detailed planning guide

Browse through the PEGASOS brochure

Download the PEGASOS brochure and further planning material

  • PEGASOS - car lift without a pit
    Product brochure (EN-UK-20240109)
  • PEGASOS car lift, planning guide
    (Status: 06-2022)
  • Planning Bundle PEGASOS (UK)
    Cabin size: 2800 x 5800 x 2100 mm Tender specification, sample drawings (pdf & dwg)

Possible applications of PEGASOS:

Single-family detached home

With the PEGASOS garage car lift, you can create more parking spaces in your home. As the lift replaces a long entrance ramp, cars can be parked easily in the underground garage or parking deck.



The PEGASOS can be mounted directly on the ground and therefore does not require a pit, making it the perfect solution for single-family homes with limited space.

Apartment houses

Create additional parking spaces in apartment buildings with the PEGASOS garage car lift. Give residents an easy and luxurious parking experience without having to save on living space.



The PEGASOS car lift is particularly suitable for providing up to 20 parking spaces in basements. This is because the shallow depth of the pit and the lack of a machine room make this car lift easy to plan and space-saving.

Office buildings

Our car lifts save the space of an access ramp, creating more parking spaces in your office building. This quick and easy entry provides a comfortable parking experience for you and your employees.



The PEGASOS is easy to plan due to the shallow depth of the pit and the lack of a machine room. It is particularly well suited for creating up to 20 parking spaces in the basement.

Hotels

A car lift for your hotel allows you to create more and easily accessible parking spaces for your hotel guests and staff. It facilitates not only an easy and fast transport of cars to different levels, but also the horizontal transport of cleaning trolleys, laundry and waste containers.



Due to its lack of machine room and the shallow depth of the pit, our PEGASOS car lift is the perfect easy-to-plan solution for your hotel.

Productfinder for Car Park Solutions

Find the right solution now

A car lift? Or an automatic parking system?


This product finder shows you suggested solutions for your project in just three steps.
Results are displayed directly to you (no registration).

HubSpot CTA
TRAFFICO
TRAFFICO

Faster parking for added flexibility


Max. lifting height:
25 m


Max. speed:
0.6 m/s


Pit depth: 1.250 mm


Particularly suitable for
up to 40 parking places

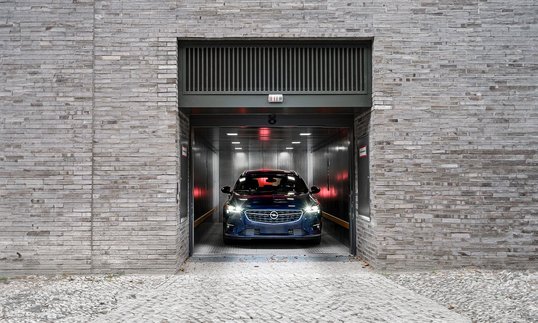

CARRICO

Less frequent traffic - less space required


Max. lifting height:
25 m


Max. speed:
0.15 m/s


Pit depth: 850 mm


Particularly suitable for
up to 26 parking places


VERTICAR

Robust technology - fast installation


Max. lifting height:
3.5 m


Max. speed:
0.15 m/s


Pit depth: 650 mm


Particularly suitable for
up to 15 parking places


Car Park Solutions

Space-saving and user-friendly


A new level of parking freedom from Lödige.
Get an overview of our space-saving parking solutions. Featuring state-of-the-art technology, we develop, realise and upgrade transportation and parking solutions for a single car through to over a thousand.

Please contact us

We look forward to your message

Frequently Asked Questions (FAQs)

A garage car lift, such as those offered by Lödige Industries, is a mechanical device designed to elevate vehicles, typically cars, within a building. Unlike traditional car scissor lifts, these garage car lifts are used for the purpose of efficiently moving vehicles between different levels of a structure.

A garage car lift, exemplified by the PEGASOS from Lödige Industries, presents a multitude of advantages that cater to diverse needs and scenarios.

One of the primary benefits of a garage car lift like the PEGASOS is its exceptional space efficiency. This is particularly valuable in urban areas or locations where floor space is at a premium. By replacing conventional access ramps, the PEGASOS optimises space utilisation, resulting in more parking or storage space within the same area.

The PEGASOS car lift also offers a straightforward parking process. Users simply drive their vehicles into the lift cabin, which then transports them vertically to their desired parking level. An intuitive user guidance system simplifies this process further.

Additionally, the lift can be operated using remote controls or smartphone apps, enhancing the overall user experience.

What’s more, the PEGASOS car lift boasts a relatively quick and cost-effective installation process, even in existing buildings. This ease of installation can lead to significant savings in construction time and expenses.

The PEGASOS garage car lift from Lödige Industries is a versatile solution suitable for a range of applications, making it suitable for various building types and scenarios.

In urban areas where floor space is at a premium, the PEGASOS car lift provides an efficient way to maximise parking space without the need for expansive access ramps. Its compact shaft geometry and different door variants make it ideal for tight urban environments.

The PEGASOS car lift can also be seamlessly integrated into residential buildings, including single-family detached homes and apartment buildings. This provides residents with a convenient and space-saving parking solution, particularly in areas where parking space is limited.

In commercial buildings such as office complexes and hotels, the PEGASOS car lift offers an effective means of optimising parking facilities. It not only maximises parking space but also enhances the overall parking experience for employees, guests, and visitors, thanks to its user-friendly features.

The PEGASOS car lift is expertly designed to ensure effortless and user-friendly operation. Its versatility in transporting vehicles offers users clear visibility at every stage of the process.

Lödige's garage car lifts can be operated using a variety of control methods, including push-button panels, remote controls, and even smartphone apps. This versatility in control options enhances the convenience and usability of these lifts in various automotive and garage applications.

Furthermore, a wide array of customisation options is at your disposal to meet specific needs, ensuring that the PEGASOS garage car lift aligns perfectly with a diverse range of requirements.
