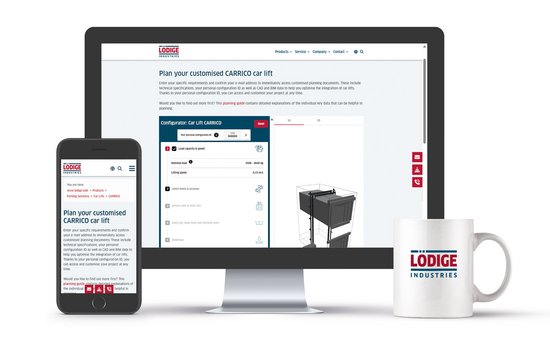

Planning guide for car lifts
Now you can plan the CARRICO more easily.
Use this practical planning support.
Download
You are here: Lödige Industries > Products > Parking Solutions > Car Lifts > CARRICO

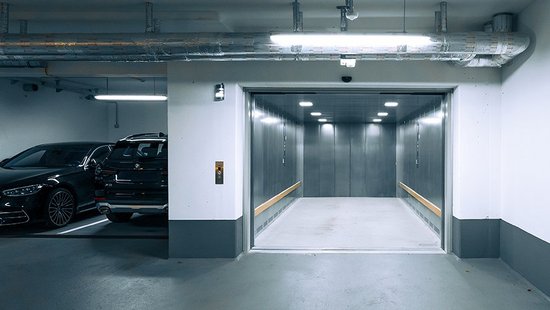

Vehicle lift CARRICO

Cost-efficient transport between floors

The vehicle lift CARRICO is an interesting alternative to the TRAFFICO when lower lifting heights and less frequent use are needed.

The CARRICO has been type-tested in accordance with the EU Machinery Directive 2006/42/EC. The conveying speed is limited to 0.15 m/s. Furthermore, this car lift is delivered with automatic sliding doors and cabin equipment designed for the transport of vehicles and passengers.



Advantages

  • Saves installation space, as no ramp is required
  • Especially suitable for narrow shafts
  • Cost-effective way to transport cars
  • Automatic travel for lifts with 2 stops for maximum comfort
  • Low noise

New: Call car lift via app

Contactless operation of car lifts for smart and safe access

Car lift control at the swipe of the smartphone

With our smartphone app solution users can call and operate car lifts via smartphone. The integrated administration tool lets you easily add or manage users and restrict or grant access saving time and cost.

More information about the Lödige app solution

Technical Data CARRICO

Lifting height max. 25 m
Nominal speed 0.15 m/s
Pit depth 850 mm (standard) - Reduction possible
Nominal load max. 4,200 kg
Cabin width 2,500 - 3,000 mm
Cabin depth 5,500 - 7,000 mm
Cabin height 2,100 - 3,000 mm
Stops 2 - 8
Accesses 2 - 16 (one above the other or opposite)
Show more Show less
Shaft head height min. 2,700 mm - depending on headroom
Shaft width Cabin width + 800 mm
Shaft depth Cabin depth + 800 mm
Axle load max. 1,750 kg - forklift operation prohibited
Control Pushbutton control
in microprocessor technology
with extensive control functions
Drive Hydraulic power unit
with pump-motor suboil unit
Operating modes Fully automatic travel (2 stops)
Automatic travel (from 3 stops)
Directives Machinery Directive 2006/42/EC
DIN EN 81-41:2011
Passenger ride Car with passenger
escort allowed

Possible applications of CARRICO:

Single-family detached home

With the CARRICO, cars can be parked in the basement without building a long drive-in ramps. It is a perfect solution to create more parking space in a single-family detached home.

Multi-family buildings, office buildings, hotels

With the CARRICO you can create additional parking space in multi-family houses, office buildings and hotels. It is particularly suitable for the development of up to 20 parking spaces in basements.
